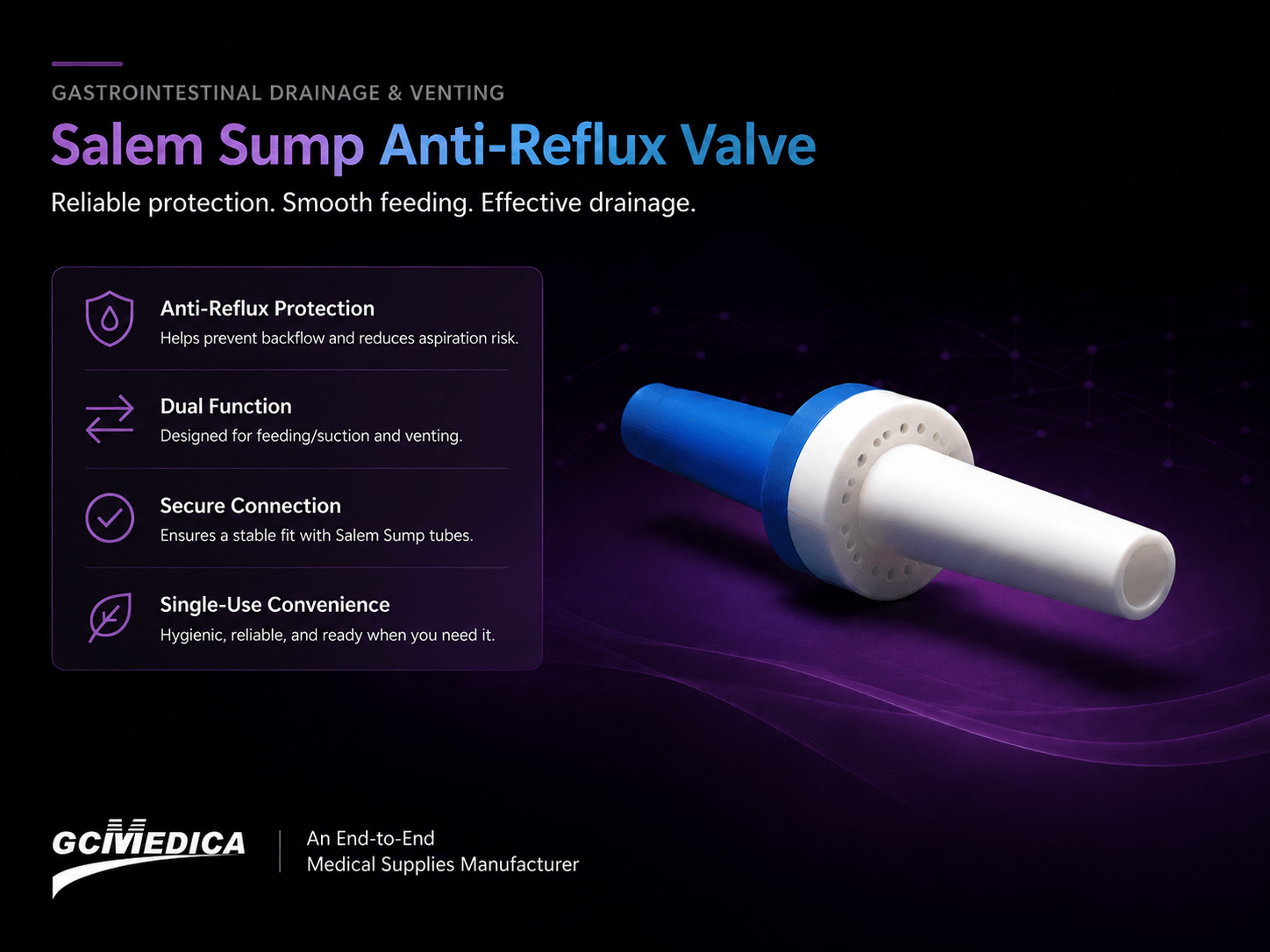

A Salem Sump anti-reflux valve is an accessory used with the air-vent lumen of a dual-lumen gastric sump tube. Its purpose is to help prevent gastric contents from escaping through the vent pathway while allowing the vent lumen to continue admitting air during suction. The valve connects to the vent side of the tube, not to the main gastric drainage lumen, and compatibility must be confirmed for the specific tube and connector design.
What Is a Salem Sump Anti-Reflux Valve?
A Salem Sump tube has two separate lumens: a larger lumen for gastric drainage or suction and a smaller lumen that functions as a sump vent. The anti-reflux valve is fitted to the vent side of the system rather than the main suction pathway.
During suction, the vent lumen allows atmospheric air to enter the tube system. If gastric fluid moves toward the vent opening, the anti-reflux valve helps limit reverse liquid flow out of that pathway. Depending on the product configuration, the valve may be supplied as a separate accessory or pre-attached to a compatible gastric sump tube.
View Dual Lumen Stomach Tube (Salem Sump) >
What Is the Purpose of the Anti-Reflux Valve?
The main purpose of the valve is to manage the vent pathway without turning it into a closed or blocked channel. It is designed to support airflow in the intended direction while helping resist liquid reflux through the vent lumen.
Helps contain gastric reflux: It helps reduce the escape of gastric contents from the vent lumen when liquid moves toward the external vent connection.
Preserves the vent function: The vent side must still be able to admit air so that the sump system can function as intended during suction.
Supports cleaner tube management: By containing reflux at the vent connection, the valve may help reduce external leakage around the tube system.
Maintains separation of functions: The main lumen continues to handle gastric drainage, while the smaller lumen remains dedicated to venting.
An anti-reflux valve does not replace the main suction connector, and it should not be presented as a feeding or medication port unless the specific product instructions identify an additional function.
Where Is the Valve Connected?
The anti-reflux valve connects to the smaller vent lumen of a compatible Salem Sump or gastric sump tube. This vent lumen is often identified by a blue pigtail or a separate vent connector, although the exact appearance varies by manufacturer and product model.
| Connection Point | Function | Valve Connection |
|---|---|---|
| Main lumen | Gastric drainage or suction | No—the anti-reflux valve is not intended for the main suction pathway |
| Air-vent lumen | Allows atmospheric air into the sump system | Yes—this is the intended connection point for a compatible anti-reflux valve |
Because connector shapes and dimensions are not identical across all gastric sump tubes, the valve should not be described as universally compatible unless validated for the specific tube family.
How Does a Salem Sump Anti-Reflux Valve Work?
The valve is designed to permit the vent pathway to admit air while resisting reverse liquid flow. When suction is applied through the larger gastric drainage lumen, air can enter through the vent side and support the sump action of the tube.
If gastric secretions travel into the vent lumen, the valve or filter structure helps contain the liquid rather than allowing it to exit freely from the external vent opening. The exact internal mechanism may differ between valve and anti-reflux filter designs, so performance claims should follow the specifications and instructions supplied with the actual product.
Learn more: What Is a Salem Sump Tube Used For? >
How Is the Anti-Reflux Valve Used?
Use should follow the instructions for the specific valve and gastric sump tube. The general connection sequence is:
Confirm the tube type. Verify that the tube has a dedicated sump vent and that the valve is listed as compatible with the tube or connector.
Identify the vent lumen. Locate the smaller air-vent pathway, which may be identified by a blue pigtail or separate vent connector.
Attach the valve to the vent side. Connect it according to the orientation and connection method specified in the product instructions.
Keep the suction pathway separate. The main lumen remains connected to the prescribed gastric drainage or suction system.
Check the connection. Confirm that the valve is secure and that the vent pathway is not kinked, clamped, capped, or obstructed.
Monitor according to protocol. Inspect for liquid accumulation, leakage, disconnection, blockage, or other signs that the valve may not be functioning as intended.
Important: The vent lumen should not be connected to suction or intentionally blocked. Connection, inspection, replacement, and disposal should follow the valve IFU, tube IFU, and the healthcare facility’s protocol.
Compatibility: What Should Be Confirmed?
Compatibility depends on more than the words “Salem Sump” or “NG tube.” Buyers and clinical teams should confirm that the valve matches the specific vent connector and product configuration.
| Compatibility Item | What to Verify |
|---|---|
| Tube type | The tube must include a dedicated sump vent suitable for the accessory |
| Connector geometry | Vent-port shape, diameter, orientation, and connection method |
| Valve format | Separate accessory, pre-attached valve, or anti-reflux filter configuration |
| Sterile status | Whether the valve is supplied sterile and whether it is intended for single use |
| Packaging | Individual packaging, units per box or case, labeling, and shelf life |
| Documentation | Instructions for use, product specifications, regulatory status, and traceability information |
A statement such as “fits all Salem Sump tubes” should only be used when supported by documented compatibility testing. Tube French size alone does not confirm that a valve will fit the vent connector.
Buyer Questions for Anti-Reflux Valve Sourcing
Is the valve supplied separately or pre-attached to the gastric sump tube?
Which tube models and vent connectors have been verified as compatible?
Is the device a valve or an anti-reflux filter, and how is the airflow pathway designed?
Is it supplied sterile, and is it labeled for single use?
What packaging, shelf-life, labeling, and regulatory documents are available?
Can the valve and tube be supplied as one validated system for OEM or private-label programs?
Contact GCMEDICA About Tube and Valve Compatibility
Frequently Asked Questions
What does a Salem Sump anti-reflux valve do?
It helps prevent gastric contents from exiting through the vent lumen while allowing the vent pathway to continue admitting air during suction.
Does the valve connect to the suction lumen?
No. It connects to the smaller air-vent lumen. The larger lumen remains the gastric drainage or suction pathway.
Can the anti-reflux valve be used with any NG tube?
Not automatically. It is intended for compatible gastric sump tubes with a dedicated vent lumen. Connector compatibility should be verified using the product specifications or IFU.
Is the anti-reflux valve the same as an enteral feeding valve?
No. An anti-reflux valve manages the sump vent pathway. An enteral valve is used for functions such as feeding, medication, irrigation, or access to the main tube lumen, depending on its design.
Should liquid be visible in the vent side?
Some valve or filter designs may contain refluxed secretions within the vent-side component. Any liquid accumulation, leakage, obstruction, or change in function should be assessed according to the device IFU and facility protocol.
Conclusion
A Salem Sump anti-reflux valve is a vent-side accessory, not a replacement for the main suction connector. Its role is to help contain gastric reflux from the vent lumen while preserving the airflow needed for the dual-lumen sump system.
Correct selection depends on the tube model, vent-connector design, valve format, sterile status, packaging, and documented compatibility. These details should be confirmed before ordering or incorporating the accessory into an OEM or private-label system.
